1st Brushless Endomotor by DTE / Woodpecker.
New on the market! Woodpecker - widely known and recognized as a pioneer in the development of reliable dental tools.
INDICATION:
- Used for biomechanical tooth preparation of root canals with an in-built apex locator used for measurement of precise working length.
CONTRAINDICATION:
- The doctor with a pacemaker is disabled.
- Patients with cardiac pacemakers (or other electrical equipment)
are warned not to use small appliances (such as electric razors, hairdryers, etc.) patients are disabled.
- Hemophilia patients are banned.
- Use with caution in patients with heart disease, pregnant women and young children.
ADVANTAGES:
- Slim Neck.
- More Powerful.
- Precise Rotation.
- Lower Noise.
- Balance Weight.
- Built-in Apex Locator.
- Integrated Length Determination makes Endodontic treatment safer and more efficient.
- Real-Time Display of file Location in the Canal.
- 340 Degree Rotatable Contra Angle.
- Front Centre of Gravity.
FEATURES:-
HIGHLY EFFICIENT BRUSHLESS MOTOR :
- The device has an adjustable reciprocal angle (reciprocating) - intervals of 10 °, adjustment range from 20 ° to 340 °.
- This option gives the possibility of an exact angle of rotation, which subsequently reduces the risk of breaking the instrument and allows higher productivity.
- Smooth rotation and lower noise make treatment more comfortable for patients.
- Strong power combined with accurate and stable torque help in the effective development of the root canal.
SUPER MINI CONTRA-ANGLE SIZE :
- The 8 mm diameter and 9.7 mm high head ensure a clear field of view during operation.

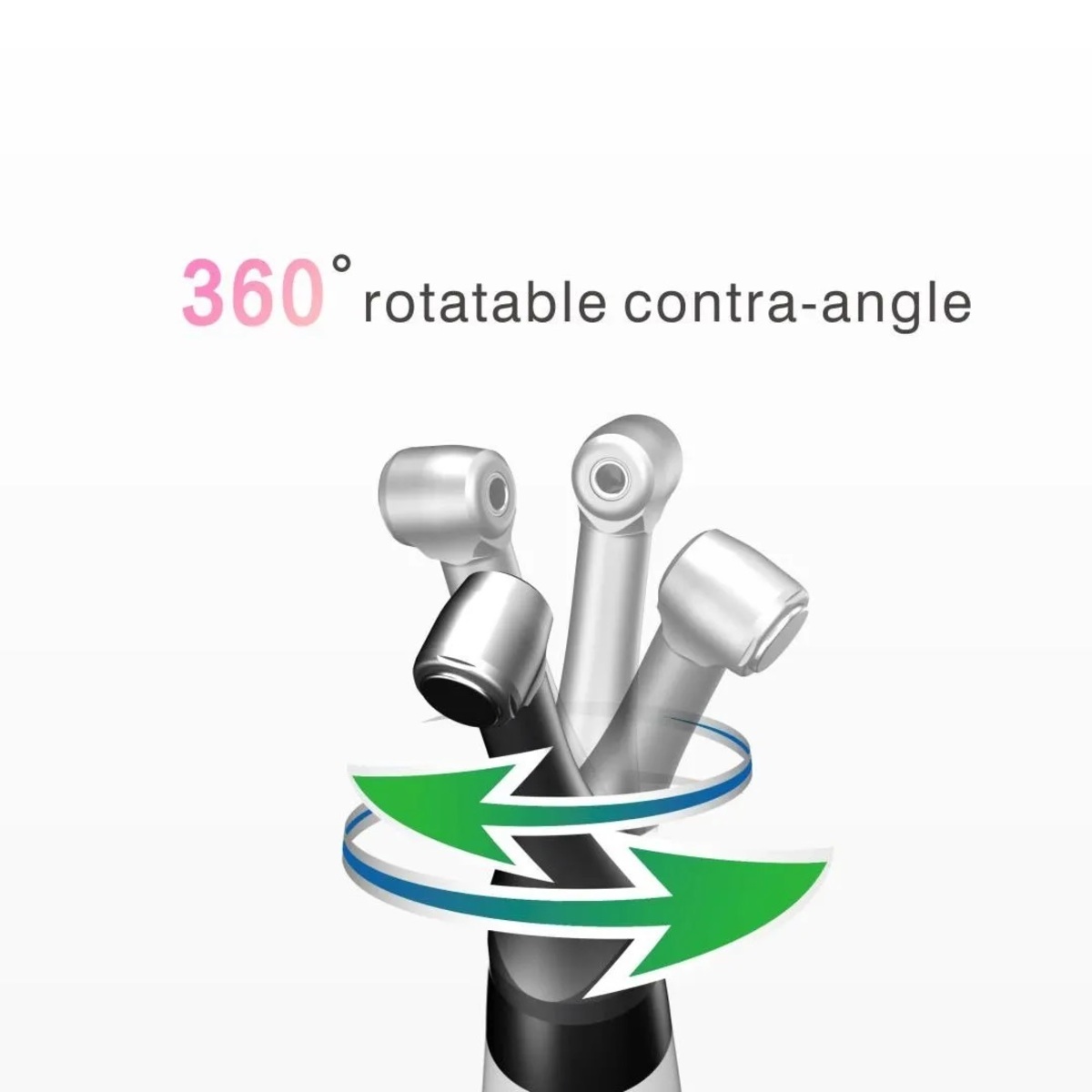

- 360 degrees adjustable contra-angle.
- 1st Brushless Endomotor by DTE / Woodpecker.
- 6:1 Contra-Angle.
- Built-in Programmed Memory of 30 Mainstream File Systems.
- 2000 mAh Lithium Battery.
- The center of gravity transferred to the front of the device, which gives even better comfort and works efficiently.
BUILT-IN ENDO MOTOR :
- We now have a 2in1 device. We can both measure the vertex and develop the channel.
- Integrated distance measurement makes endodontic treatment safer and more efficient.
- Motopex displays the tool location in the channel in real-time.
- It automatically stops or rotates backward as soon as the tool reaches the tip stop to prevent perforation.
- The Auto Start and Auto Stop functions respectively allow the engine to start automatically when the tool enters the channel and stops it outside.
KEY SPECIFICATION:-
TECHNICAL SPECIFICATION:
Lithium battery in motor handpiece |
3.7V /2000mAh |
Torque range |
0.4Ncm-5.0Ncm(4mNm ~ 50mNm) |
Speed range |
100rpm~1200rpm |
Power input |
~100V-240V 50Hz/60Hz 400mA Max |
Power output |
DC5V/1A |
PACKAGING:-
- 1 x Endo motor Unit
- 1 x Charging Unit
- 1 x Power Adapter
- Instruction manual
