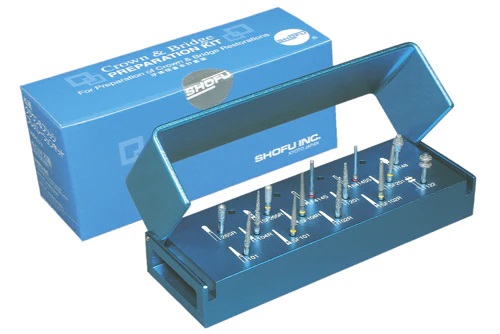

Shofu Crown & Bridge Dental Preparation Kit

The Crown & Bridge Preparation kit is designed to offer speedy, simple and accurate tooth preparation for a wide range of crown and bridge restorations, veneers and onlays. Precise depth orientation grooves can be achieved easily with the specially designed depth cutting diamond points. 2 special "Tissue-Protective End-Cutting Burs" for shoulder preparation and finishing under gingival margins without injuring the soft tissue.
These points are hygienically organized in an aluminium bur block (autoclavable) for convenient sterilization and easy replacement.

TAPERED FLAT ENDED DIAMOND POINTS:- For crown & bridge and metal inlay preparation
TAPERED ROUND ENDED DIAMOND POINTS:- For crown & bridge preparation with a heavy chamfer
TAPERED ELLIPSE:- For crown & bridge preparation with a light chamfer and the superfine grit for finishing restorative materials
TISSUE PROTECTIVE END-CUTTING:- 1.0mm depth for anterior tooth, all ceramic crown preparation
ROUND INVERTED CONE:- For buccal, palatal and lingual reduction during crown & bridge preparation
DOUBLE CONE:- For occlusal reduction during crown & bridge preparation

FEATURES

• Precise depth orientation grooves can be achieved easily with the specially designed depth cutting diamond points.
• 2 special "Tissue-Protective End-Cutting Burs" for shoulder preparation and finishing under gingival margins without injuring the soft tissue.
• These points are hygienically organized in an aluminium bur block (autoclavable) for convenient sterilization and easy replacement.
• 14 kinds of specially selected FG Diamond Points in 3 different grits.
• Regular (No marking on shank)
• Fine (Red band on shank)
• SuperFine (Yellow band on shank)

KEY SPECIFICATION
Technical Specification


• TAPERED FLAT ENDED DIAMOND POINTS
  Regular Grit - #201,#101
  SuperFine Grit - #SF210, SF101
• TAPERED ROUND ENDED DIAMOND POINTS
  Regular Grit - #102R
  SuperFine Grit - #SF102R
• TAPERED ELLIPSE
  Regular Grit - #104R
  SuperFine Grit - #SF104R
• TISSUE PROTECTIVE END-CUTTING
  Fine Grit- #F414SS,F414S
• ROUND INVERTED CONE
  Regular Grit - #265R,#SF265R
• DOUBLE CONE
  Regular Grit - #148
• DEPTH CUTTING DIAMOND POINTS
  Regular Grit - #122
  Maximum recommended speed for the burs:
  Less than 450,000 rpm: 201, SF201
  Less than 300,000 rpm: 101, 102R, 104R, 265R, F102R, F414SS, F414S, SF101, SF104R, SF265R
  Less than 160,000 rpm: 148
  Less than 120,000 rpm: 122
