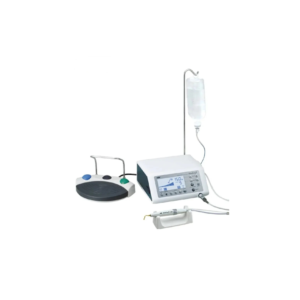

Nsk VarioSurg 3 Optic - Piezosurgery Unit / Dental equipments

The ultrasonic Surgical approach to surgery reduces heat generation to minimise osteonecrosis and avoid damage to surrounding soft tissue. Depending on the bone density, three types of “Burst Mode” are available to improve cutting efficiency With a variety of tips, available applications include bone surgery, sinus lifts, periodontal surgery, endodontic surgery and orthodontics. VarioSurg is the only ultrasonic surgical system with integrated lighting to improve efficiency, operating comfort and guarantee optimal visibility.

FEATURES :-

BURST MODE

You can switch modes instantly from Surg Mode to Burst Mode even during the procedure. Burst Mode creates a hammer drill effect capable of cutting through even the hardest tissues. Select any of three types of Burst Mode according to the procedure and the condition of the bone.

FOOT CONTROLLER

The VarioSurg3 foot control conforms with the IPX8 standard for medical foot control systems. All functions are clearly marked and allow accurate and hands-free operation of the unit within the pre-set parameters. Using the metal bar the foot control can easily be re-positioned at any time.

LINK

You can operate both the implant motor Surgic Pro and VarioSurg3 ultrasonic bone surgery system with a single foot control by linking the two units with the link cable. Put the two units on the Link Stand and create a compact and space saving, all encompassing surgical treatment centre. The two systems can also be installed together compactly with a Link Stand that takes up minimal space.

ADJUSTABLE LED

Switch effortlessly between three levels of light intensity to suit the procedure.

TIP

We maximize the sharpness of our tips through three-dimensional cutting (toothing) of the blade's edge.

FEEDBACK FUNCTION

Constantly checks the performance parameters of the ultrasonic unit during operation. Simultaneously it controls the power output, which enables to supply the power suited for bone cutting procedure.

KEY SPECIFICATIONS :-

• Frequency - 28-32 kHz
• Power Supply - AC120V or 230V 50/60 Hz
• Irrigation Flow Rate - 10~75 mL / min
• Programs - SURG x 5, ENDO x 2, PERIO x 2
• Dimensions - W265 x D220 x H100 (mm)

WARRANTY :-

• Manufacturer/Importer warranty of 1 year as applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR )
• DENTALPROD will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• DENTALPROD and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and DENTALPROD may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

PACKAGING :-

• 1 x Control Unit
• 1 x LED Handpiece with 2m cord
• 1 x FC-78 Foot Control
• 1 x Sterilisation Cassette
• 1 x Handpiece Stand
• 1 x Irrigation tube (5 pcs.) and other accessories
• 1 x Basic H-S Kit (H-SG1, SG3, SG5, SG6D, SG7D, SG11, and Tip holder)
