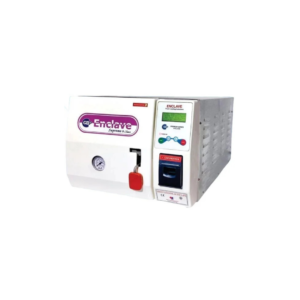

GDP Enclave Front Loading Autoclave Vacuum, Sterilization

Enclave B Class is fully automatic front loading autoclave. with Vacuum, Sterilization and Dry Cycle. Vacuum pump is installed inside the autoclave to allow Pre and Post sterilization vacuum cycle inside the chamber as per the International standards. Total of 6 Vacuum Cycles during sterilization Electronic circuit inside the Autoclave with programmable integrated circuit chip The chip is programmed having Dynamic control of parameters. It comes with digital display of all the operations in sequence and timer and temperature The front control panel has a touch type key switches and also have LED Indicators to indicate the operation going inside the autoclave Front door and panel is made of heat resistance plastic and the top cover is made of stainless steel The autoclave is programmed to perform all necessary operations required in sterilization. Sealing Ring is made of silicon rubber Sterilization with dry cycle completes with single touch of start button All the operations goes automatically with single touch of start button without the need of opening the door. 1)3 Nos. of Pre Vacuum Cycle 2)Heating plus sterilization Cycle 3)Release of steam and water 4)Post Vacuum Cycle 5)Dry Cycle 6)Vacuum Cycle during Dry Cycle 7)Post dry cycle vacuum.

Technical Information

• Width 470mm Height : 400mm Depth : 640mm
• Capacity 22ltr and 16ltr
• Power Consumption 2 KW
• Gross Weight 35 kg
• Inter Chamber size Dia 255mm x 432mm
• Tray 215mm x 405mm (Stainless Steel)

Features

• 3 Nos. of Pre Vacuum Cycle
• Heating plus sterilization Cycle
• Release of steam and water
• Post Vacuum Cycle
• Dry Cycle
• Vacuum Cycle during Dry Cycle
• Post dry cycle vacuum

Packing
1 Unit.
