Acteon Intra Oral Camera (Soprocare & Sopro 617)

Acteon Soprocare Intra Oral Camera

• The SoproCare® from Acteon ® does not only detect caries (CARIO mode), it is also the only camera that uses auto-fluorescence and selective chromatic amplification to highlight gingival inflammation and to distinguish old and new dental plaque (PERIO mode). Thanks to its high efficiency optical system, it also offers, in DAYLIGHT mode, a unique kind of image quality. Three operating modes in one unique camera for an early detection of symptoms, a minimally invasive diagnosis and a clear and motivating communication with the patient.
• The patented SoproCare® concept was developed to assist the dental practitioner during prophylactic and periodontal treatment.

BENEFITS

• A RELIABLE DIAGNOSIS OF INFLAMMATION AND DENTAL PLAQUE IN PERIO MODE

• Thanks to specific wavelengths ranging from 440 to 680 nm, SoproCare® features an exclusive PERIO® mode for chromatic insight on dental plaque, tartar and gingival inflammation.
• The gingival inflammation is indicated with subtle hues ranging from purple-pink to magenta-red depending on its severity. At the same time the new dental plaque appears white and grainy, and the old plaque, on the other hand, ranges from light yellow to orange depending on its mineralization.

• AN INTUITIVE CHROMATIC MAPPING IN CARIO MODE

Whether it is a distinct cavity or a first visual change in enamel, in CARIO mode (450 nm), the caries can be easily identified in bright red and black, the healthy dental tissues on the other hand appear distinctively in black and white.

• A CLEAR VISUALIZATION AND A LARGE DEPTH OF FIELD IN DAYLIGHT MODE

In DAYLIGHT mode SoproCare® offers in-depth magnified views: indeed the Macro vision provides a magnification up to 110 times, revealing details otherwise not visible to the naked eye or with radiography. This enables close monitoring of micro fractures and their development. With the preset focus ring and enhanced focal depth each image becomes instantly sharp and precise under every angle of the camera and for each pre-set focal depth. With one click, easily go from Macro vision to one tooth, intra-oral and extra-oral vision.

FEATURES

• ENHANCED PROPHYLACTIC TREATMENT, EASY COMMUNICATION WITH THE PATIENT

• Whether you are using Windows® or Mac®, a video device or a USB2 output the new intraoral camera, SoproCare® is compatible with any software and has the right combination for every possible use and connection.
• In addition, this fluorescence camera is light and easy to handle: With a simple glide over the SoproTouch® you can freeze images on your monitor, the protections guarantee a hygienic environment and the autoclavable nozzle SoproTip® acts as a screen from the surrounding light. The combination of the latest fluorescence techniques, the selective chromatic amplification, the powerful lighting and the Macrovision view makes SoproCare®, for practitioners, an essential devise for reliable therapy on caries and periodontal health issues as well as for in depth communication with the patient.

• ADVANCED FUNCTIONALITY FOR INTUITIVE NAVIGATION

The ACTEON® Imaging software offers the dentistry industry intuitive navigation and advanced functionality. It alone lets you manage all of your dental images, from scanning to viewing images from all ACTEON® Imaging devices (CBCT, Panoramic, intraoral digital X-Ray system, intraoral camera), and much more

PACKAGING

• 1 Unit

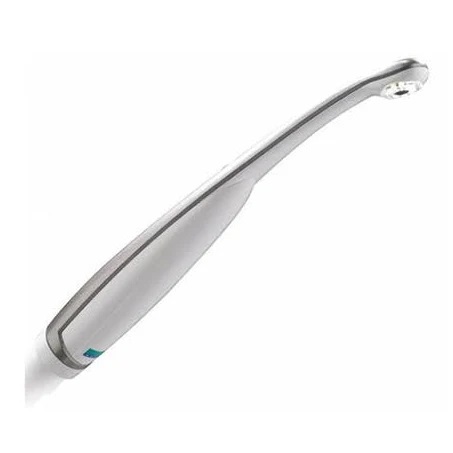

SOPRO 617 Intra Oral Camera

The SOPRO 617 camera is now a worldwide standard for dentists who demand SOPRO image quality.
The SOPRO 617 Color Line has been designed to light up your working environment.
The high quality, natural images speak for themselves and allows an easier exploration of the distal areas
of the patient’s mouth.

FEATURES

Optimised Ergonomics:-
The SOPRO 617® intra-oral camera offers a 105° view for improved exploration of the distal areas. Its rounded shape and the thinness of the distal part make it more comfortable in the mouth.

Automatic Focusing And Maximum Depth Of Field:-
The new optical system of the SOPRO 617 is equipped with an aspheric lens which avoids distortion and provides a high quality image. No adjustment is necessary to obtain a perfectly clear image.

Sopro touch, the “original":-
Fix the image on the screen simply by touching the touch-sensitive SOPROTOUCH
Maximum accessibility for unrivalled patient comfort. Great depth of field.
105° view for improved exploration of the distal areas. Compatibility with a video screen and/ or a computer.
High-quality images. Easy to use.

 KEY SPECIFICATIONS

• High sensitivity:- 1/4” CCD
• Resolution:- (752x582) PAL;(768x494) NTSC
• Definition:- 470 lines
• Sensitivity:- 2 lux
• Lighting:- 8 LED
• Adjustment:- automatic
• Non-inverted image
• Freeze Frame with SoproTouch or pedal (option)
• Angle of view:- 80°
• Cable length:- 2.5 m (option: 5 and 7 m)
• Dimensions of the handpiece in mm:- L. 205 x W. 28 x H. 24
• Usable part dimensions in mm:- W. 16 x D. 11.10
• Weight:- 55 g
• Maximum accessibility for unrivalled patient comfort.
• Great depth of field.
• 105° view for improved exploration of the distal areas.
• Compatibility with a video screen and/ or a computer.
• High-quality images.
• Easy to use.

PACKAGING

• 1 Unit.
